6-speed transmission swap part 3, WIN

So after a lot of searching I found a 6-speed propshaft for sale on autolink.co.uk that was not listed on their site.

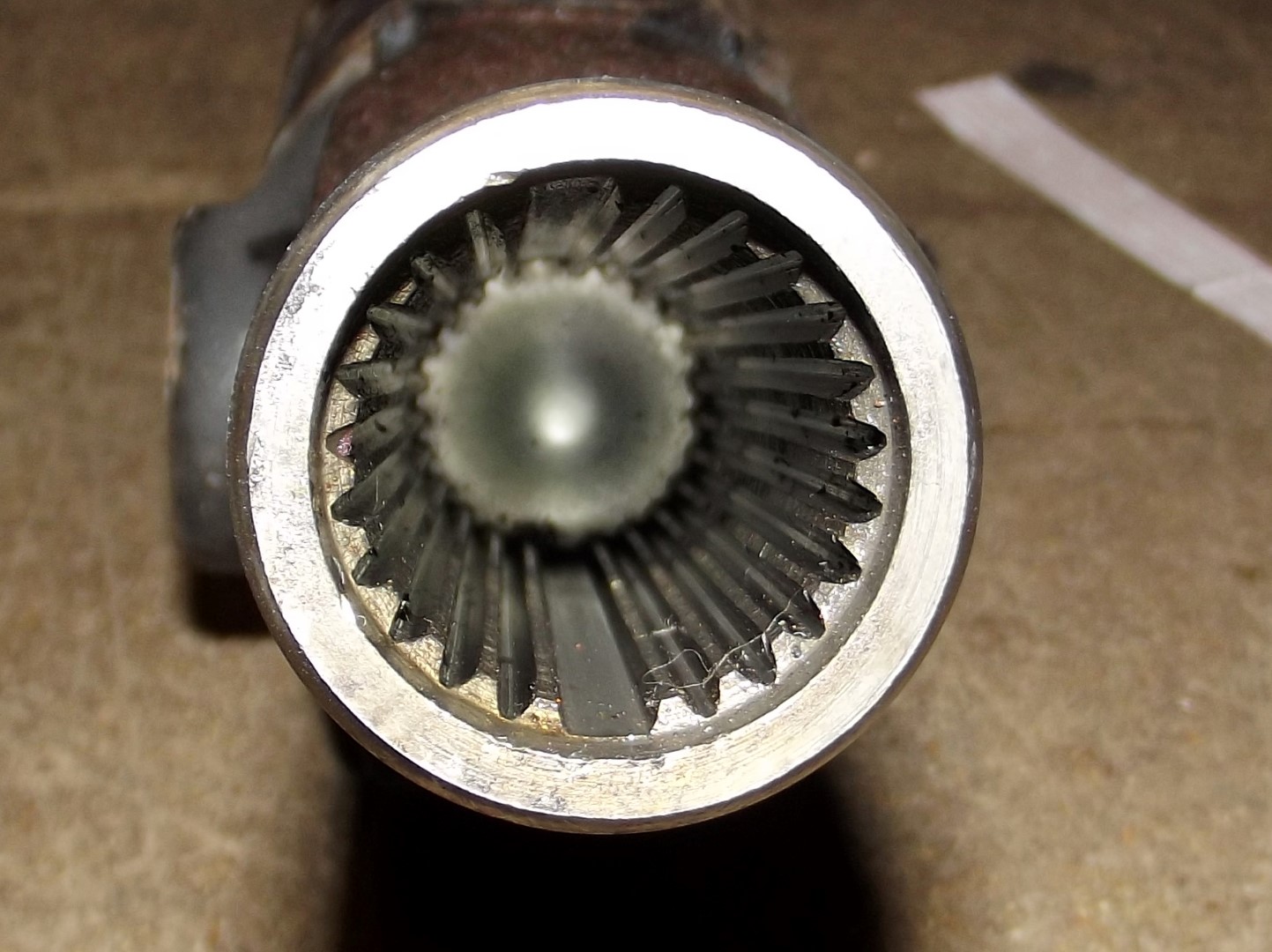

For reference , here is a pic of both the 6-speed axle and yoke spline in case there are other people out there going the same route. You want 25 splines and a 38 outer diameter on the yoke. Notice that 2 splines are missing.
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div><div class="separator" style="clear: both; text-align: center;"></div>

New vs old flywheel. It is supposed to be 13 vs. 20 pounds stock.
<div class="separator" style="clear: both; text-align: center;"></div>
Getting the pilot bearing out was a b** and required me to buy a special sliding hammer tool for \($<br><div class="separator" style="clear: both; text-align: center;"><br></div><div class="separator" style="clear: both; text-align: center;"><img border="0" height="400" src="/content/images/IMAGE-297.jpeg" width="300"></div><br><div class="separator" style="clear: both; text-align: center;"><img border="0" height="400" src="/content/images/IMAGE-298.jpeg" width="300"></div><div class="separator" style="clear: both; text-align: center;"><br></div><br>Every thing mounted torqued down with locktite.<br><div class="separator" style="clear: both; text-align: center;"><img border="0" height="240" src="/content/images/IMAGE-299.jpeg" width="320"></div><br>Based on pain and bad language the 6-speed must be heavier than the 5-speed I replaced. I had to make a "special" tool to balance it on the floor jack. &nbsp;Removing the PPF would make the job easier.<br><br><div class="separator" style="clear: both; text-align: center;"><img border="0" height="300" src="/content/images/IMAGE-300.jpeg" width="400"></div><div class="separator" style="clear: both; text-align: center;"><br></div><div class="separator" style="clear: both; text-align: left;">First impressions;</div><div class="separator" style="clear: both; text-align: left;">It totally transforms the car. &nbsp;2-3rd are now much more usable. &nbsp;I am confident that this will better my times on Rudskogen as it will be easier to keep it in the 5500-7200 rpm range out of corners on.</div><div class="separator" style="clear: both; text-align: left;">The flywheel does it job by making rev matching easier but could be a couple of pounds lighter for even faster shifting I think. &nbsp;I would totally recommend swapping to a 6-speed. The best thing is of course to get a 2.0 with the 6-speed stock.</div><div class="separator" style="clear: both; text-align: left;"><br></div><div class="separator" style="clear: both; text-align: left;">The Moss shifter is terrible. &nbsp;Sloppy, noisy, not compatible with my fancy\)$ bronze beat rush shifter bushing, the reverse spring is way to weak and the part of the shifter that is touching the 1-2 guide plate is too small making it hard to shift to 2rd . The throw is also too short making gear changes physically hard an with less precision.</div><div class="separator" style="clear: both; text-align: left;">It’s crap! </div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div>
